Overview
Nimbus only supports standalone configurations of the C-TEC XFP range of fire alarm control panels. Nimbus requires an XFP panel with printer support, such as the 501/502 32 zone panels.
Note: the 501 16 zone panel does not have printer support and so is not compatible with Nimbus.
Equipment required
From Nimbus
-
A Nimbus Connect or Fixed Gateway device
-
3 core screened data cable
-
Nimbus Clear to Send (CTS) C-TEC XFP panel connector (part no 201-309-01).
From the panel manufacturer/3rd party
- n/a
Panel configuration
Enable the panels RS232 communications port and configure to print events:
-
Run the XFP programming tool on your PC.
-
Load a copy of the latest panel configuration.
-
Under the "Site Configuration" tab, enable the 'Real Time Output of Events" option.
-
Upload the panel configuration to the panel.
Wiring

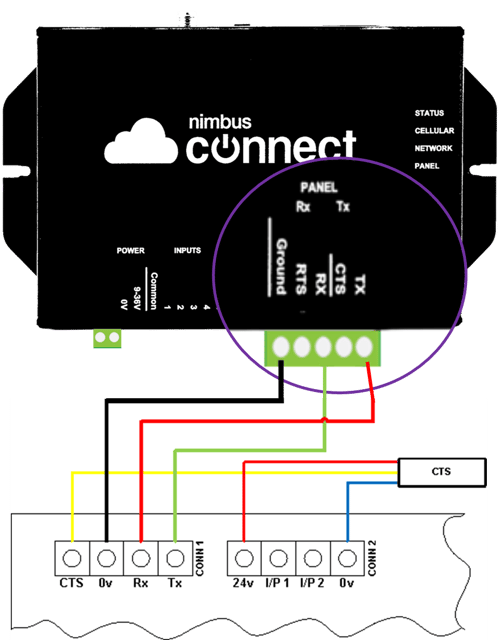

Using 3 core screened data cable and the Nimbus supplied C-TEC XFP panel connector, wire as follows.
