Overview
Nimbus supports standalone configurations of the Fike QuadNet & DuoNet Fire Alarm control panels.
Equipment required
From Nimbus
-
A Nimbus Connect or Fixed Gateway device
-
A Female 'D' Type panel connector (part no 201-305-01)
From the panel manufacturer/3rd party
- 3 core screened data cable
Panel configuration
Set the panels baud rate to 9600 and frame to 8N1.
Wiring
Connect the Female 'D' connector to the RS232 port on the panel.

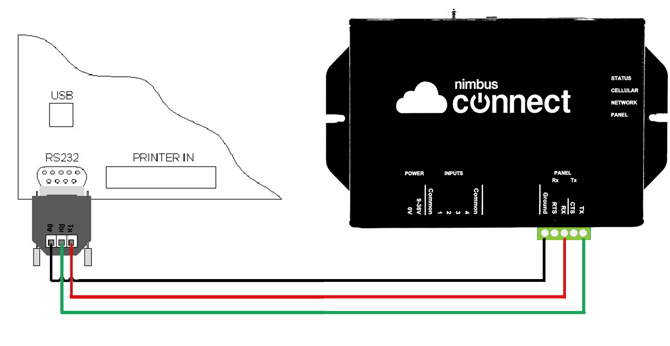

Using 3 core screened data cable wire to the Nimbus RS232 as follows.
| Panel connector | Nimbus RS232 |
| Ground | Ground |
| Rx | Tx |
| Tx | Rx |
