Connect/Gateway panel guide: Gent Nano

Equipment required

From Nimbus

• A Nimbus Connect or Fixed Gateway device

• A Gent Nano panel connector (part no 201-307-01)

From the panel manufacturer/3rd party

• 3 core screened data cable

• USB A to USB A cable

Panel configuration

None required.

Wiring

1. The Gent Nano panel connector is a USB to RS232 interface, usually mounted close to the fire panel on a single gang electrical accessory pattress box

2. Connect the interface to the panel via USB

3. Power to the Interface is usually supplied from the panel

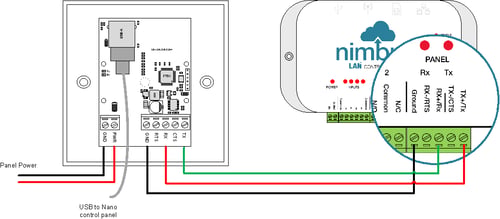

4. Using 3 core screened data cable wire to the Nimbus RS232 as follows
