Equipment required
From Nimbus
-
A Nimbus Connect or Fixed Gateway device
From the panel manufacturer/3rd party
- Screened data cable
Panel configuration
Set the panels baud rate to 9600 and frame to 8N1

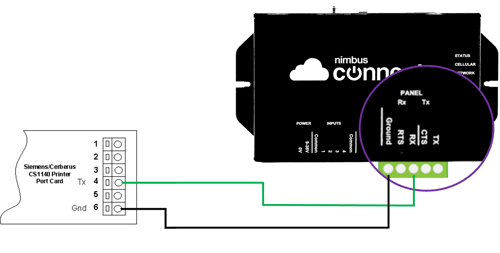

Wiring
Using 3 core screened data cable, wire as follows:
| Printer Port Card | Nimbus RS232 |
| Tx | Rx |
| Gnd | Ground |
