Equipment required
-
A Nimbus Connect or Fixed Gateway device
-
3 core screened data cable
- Siemens RS232 module (part no FCA2001-A1)
Panel configuration
Install the RS232 card in the panel, following the installation instructions provided by Siemens.
Wiring

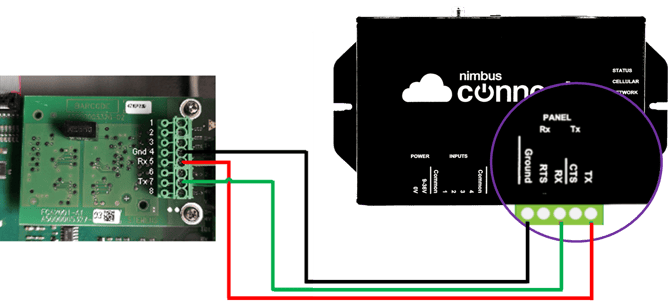

Using 3 core screened data cable, wire as follows:
| RS232 Card | Nimbus RS232 |
| Gnd | Ground |
| Rx | Tx |
| Tx | Rx |
