Connect/Gateway panel guide: Tyco Minerva 8/16E/80

Equipment required

From Nimbus

• A Nimbus Connect or Fixed Gateway device

• A Tyco Minerva panel connector (part no 201-302-01)

From the panel manufacturer/3rd party

• 3 core screened data cable

Panel configuration

1. Set the baud rate to 4800

2. Enable Communication Port

   1. Panel Type

      1. Has Printer

         1. 80 Column

Wiring

Connect the Tyco Minerva panel connector to the PL3 serial port on the interface board.

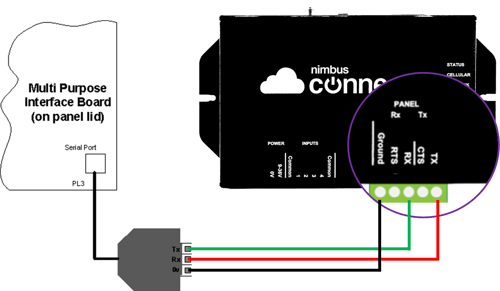

Using 3 core screened data cable wire to the Nimbus RS232 as follows.
